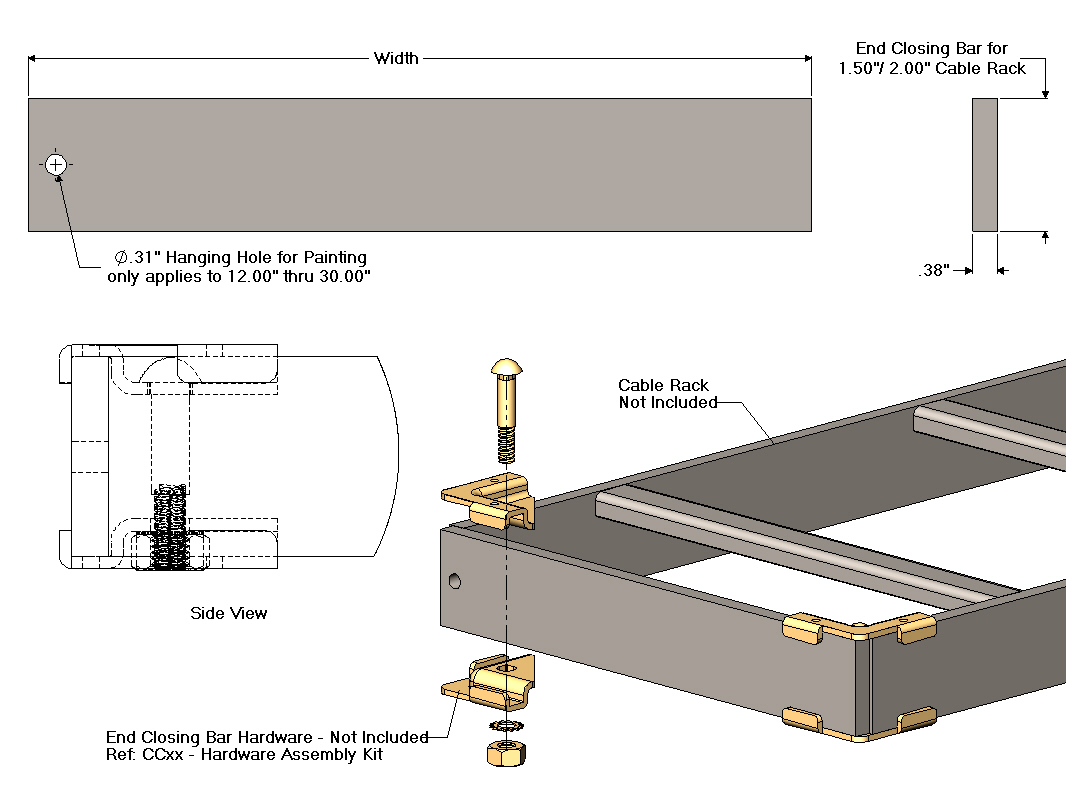

EB Series - End Closing Bar for Cable Rack 1.50" / 2.00"
EB1xx Series - 1.50" End Closing Bar| CSF P/N# | Width | Cable Rack Width |
|---|
| EB105 | 4.75" | 5.00" |
| EB106 | 5.75" | 6.00" |
| EB110 | 9.75" | 10.00" |
| EB112 | 11.75" | 12.00" |
| EB115 | 14.75" | 15.00" |
| EB118 | 17.75" | 18.00" |
| EB120 | 19.75" | 20.00" |
| EB124 | 23.75" | 24.00" |
| EB125 | 24.75" | 25.00" |
| EB130 | 29.75" | 30.00" |
EB2xx Series - 2.00" End Closing Bar| CSF P/N# | Width | Cable Rack Width |
|---|
| EB205 | 4.75" | 5.00" |
| EB206 | 5.75" | 6.00" |
| EB210 | 9.75" | 10.00" |
| EB212 | 11.75" | 12.00" |
| EB215 | 14.75" | 15.00" |
| EB218 | 17.75" | 18.00" |
| EB220 | 19.75" | 20.00" |
| EB224 | 23.75" | 24.00" |
| EB225 | 24.75" | 25.00" |
| EB230 | 29.75" | 30.00" |
EB1xxK1 - 1.50" Cable Rack End Closing Bar w/ Hardware Kit| Item | CSF P/N# | Description | QTY |
|---|
| 1 | EB1xx | End Closing Bar | 1 |
| 2 | CC12 | Corner Clamp Kit | 1 |
EB2xxK2 - 2.00" Cable Rack End Closing Bar w/ Hardware Kit| Item | CSF P/N# | Description | QTY |
|---|
| 1 | EB2xx | End Closing Bar | 1 |
| 2 | CC22 | Corner Clamp Kit | 1 |
