WHB Series

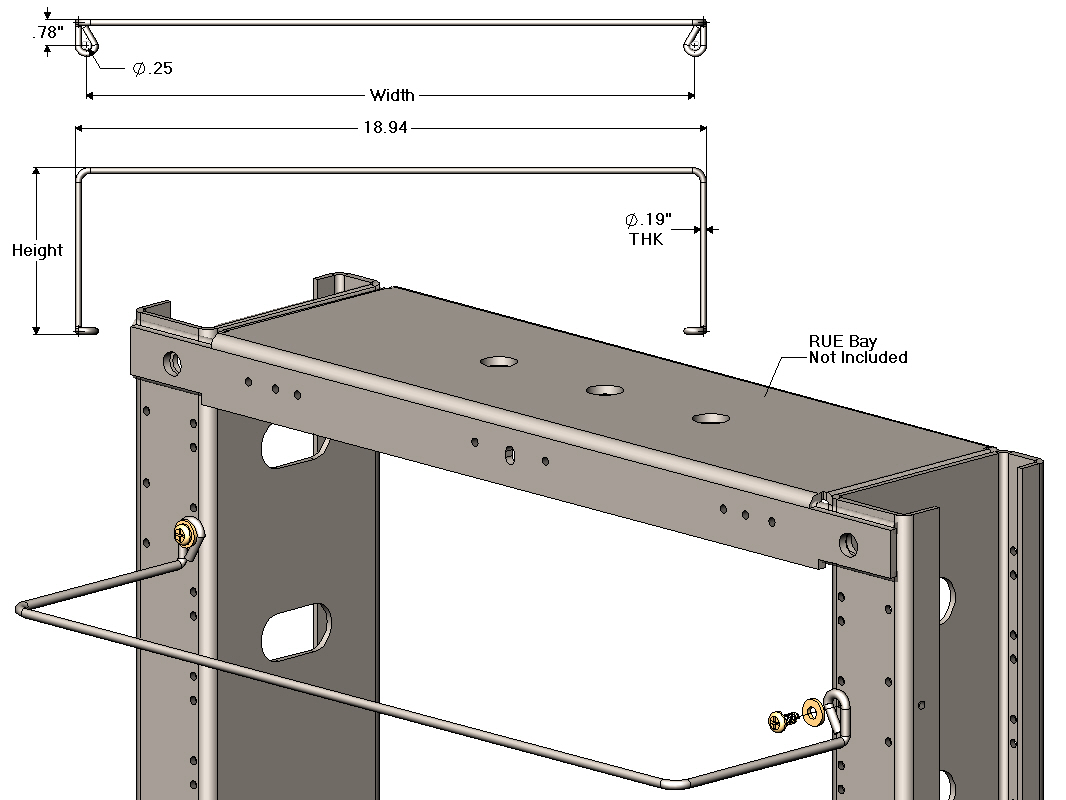

WHB Series - Equipment Rack Wire Harness Bracket

19.00" Equipment Rack Wire Harness Bracket
CSF P/N#	Height	Width
WHB019xx	0.00"	18.31"
WHB119xx	1.00"	18.31"
WHB219xx	2.00"	18.31"
WHB319xx	3.00"	18.31"
WHB419xx	4.00"	18.31"
WHB519xx	5.00"	18.31"
WHB819xx	8.00"	18.31"

23.00" Equipment Rack Wire Harness Bracket
CSF P/N#	Height	Width
WHB023xx	0.00"	22.31"
WHB123xx	1.00"	22.31"
WHB223xx	2.00"	22.31"
WHB323xx	3.00"	22.31"
WHB423xx	4.00"	22.31"
WHB523xx	5.00"	22.31"
WHB823xx	8.00"	22.31"

Notes

Kit includes all mounting hardware.
Other sizes available upon request.
Finishes: See Color Chart.
RUE Bay - Not Included

Download Data Sheet

Catalog Page for WHB Series
