BPW Series

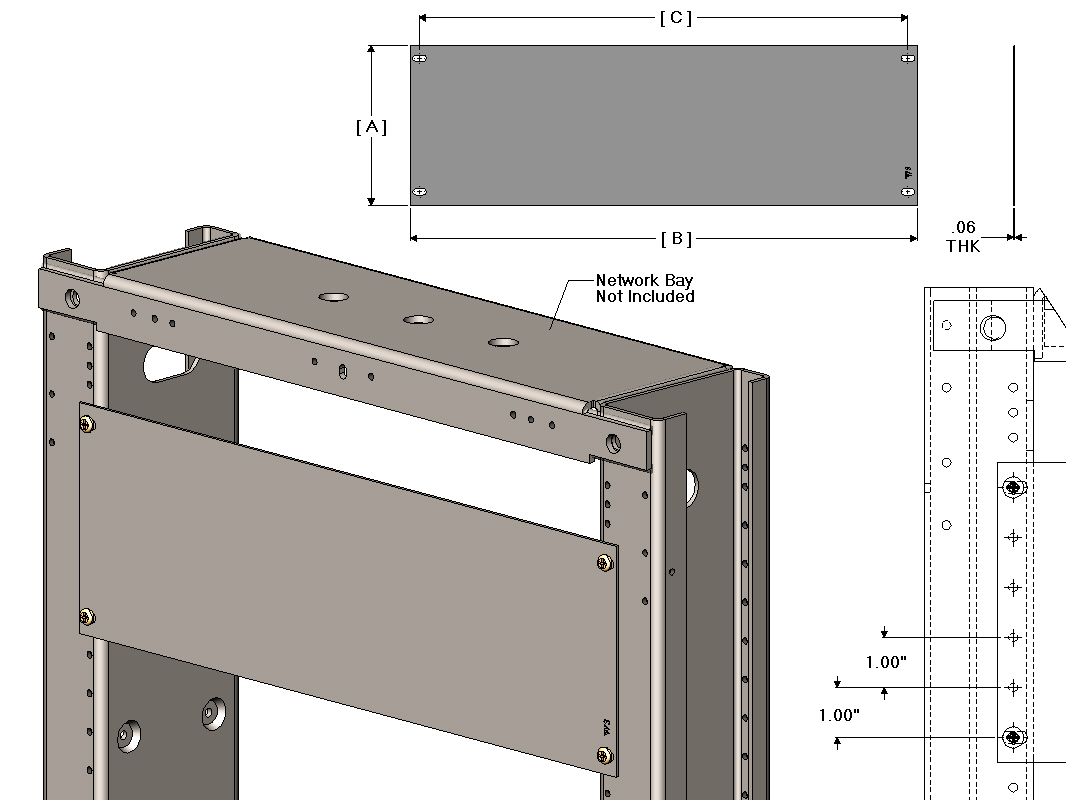

BPW Series - Blank Panel (WECO) 1.00" Mounting Hole Pattern
BPW Series - Blank Panel (WECO) 1.00" Mounting Hole Pattern
CSF P/N#Mounting SpacesHeightWidthMounting
BPW119xx12.00"19.00"18.31"
BPW219xx24.00"19.00"18.31"
BPW319xx36.00"19.00"18.31"
BPW419xx48.00"19.00"18.31"
23.00" Blank Panel (WECO) 1.00" Mounting Hole Pattern
CSF P/N#Mounting SpacesHeightWidthMounting
BPW123xx12.00"23.00"22.31"
BPW223xx24.00"23.00"22.31"
BPW323xx36.00"23.00"22.31"
BPW423xx48.00"23.00"22.31"

Notes

  •  Kit includes all mounting hardware and blank panel.
  •  Finish: See Finish codes for paint finishes.
  •  Other sizes and finishes available upon request.
