BPE Series

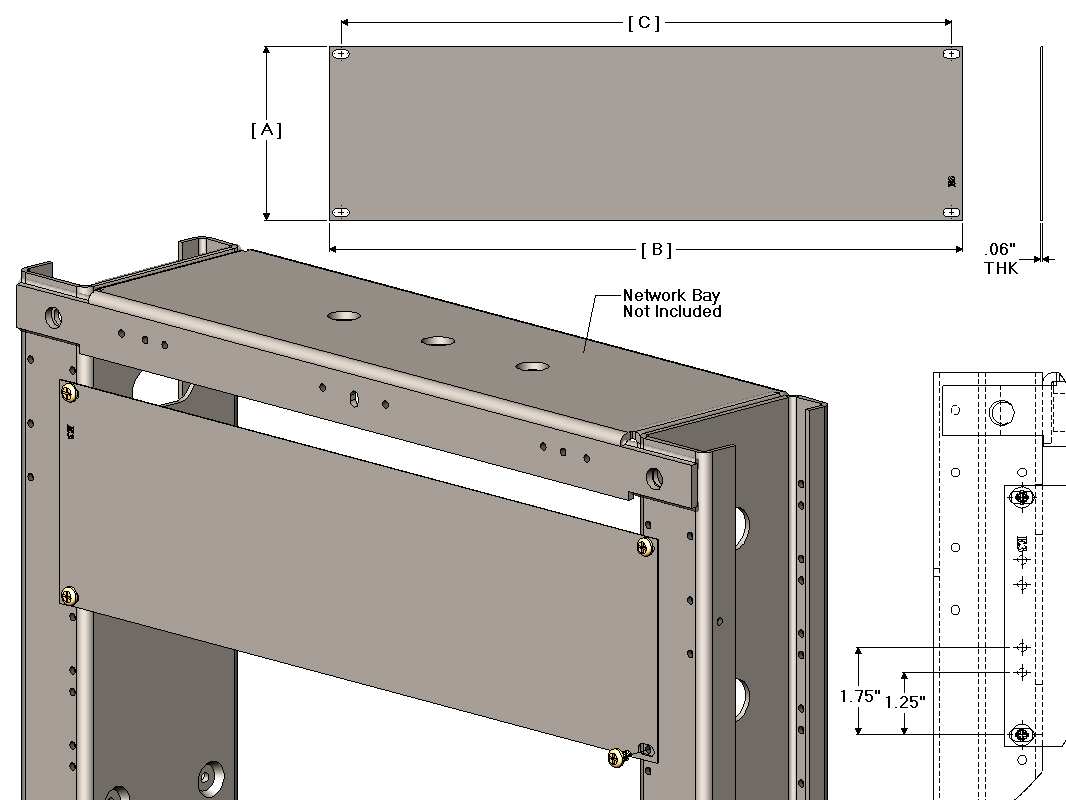

BPE Series - Blank Panel (EIA) 1.75" Mounting Hole Pattern
19.00" Blank Panel (EIA) 1.75" Mounting Hole Pattern
CSF P/N#Mounting SpacesHeightWidthMounting
BPE119xx11.75"19.00"18.31"
BPE219xx23.50"19.00"18.31"
BPE319xx35.25"19.00"18.31"
BPE419xx47.00"19.00"18.31"
23.00" Blank Panel (EIA) 1.75" Mounting Hole Pattern
CSF P/N#Mounting SpacesHeightWidthMounting
BPE123xx11.75"23.00"22.31"
BPE223xx23.50"23.00"22.31"
BPE323xx35.25"23.00"22.31"
BPE423xx47.00"23.00"22.31"

Notes

  •  Kit includes all mounting hardware and blank panel.
  •  Finish: See Finish codes for paint finishes.
  •  Other sizes and finishes available upon request.
