SAC1001

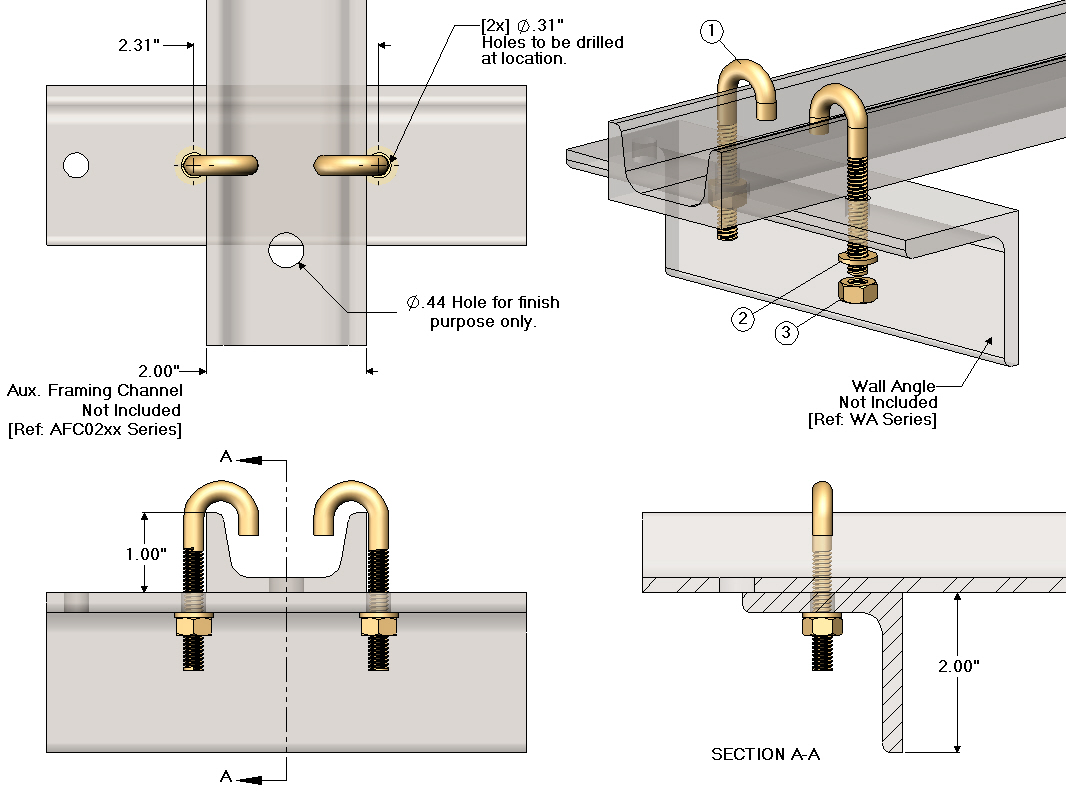

SAC1001 - Aux. Framing Channel supported onto Wall Angle
SAC1001 - Aux. Framing Channel supported onto Wall Angle
ItemCSF P/N#DescriptionQTY
1JB241 1/4-20 "J" Bolt2
2LW1541/4" Spring Lock Washer2
3HN1441/4" Hex Nut2

Notes

  •  Finish: zinc yellow
  •  Wall Angle - Not Included
  •  [Ref: WA Series]
  •  Aux. Framing Channel - Not Included
  •  [Ref: AFC02xx Series]
