SAC0501

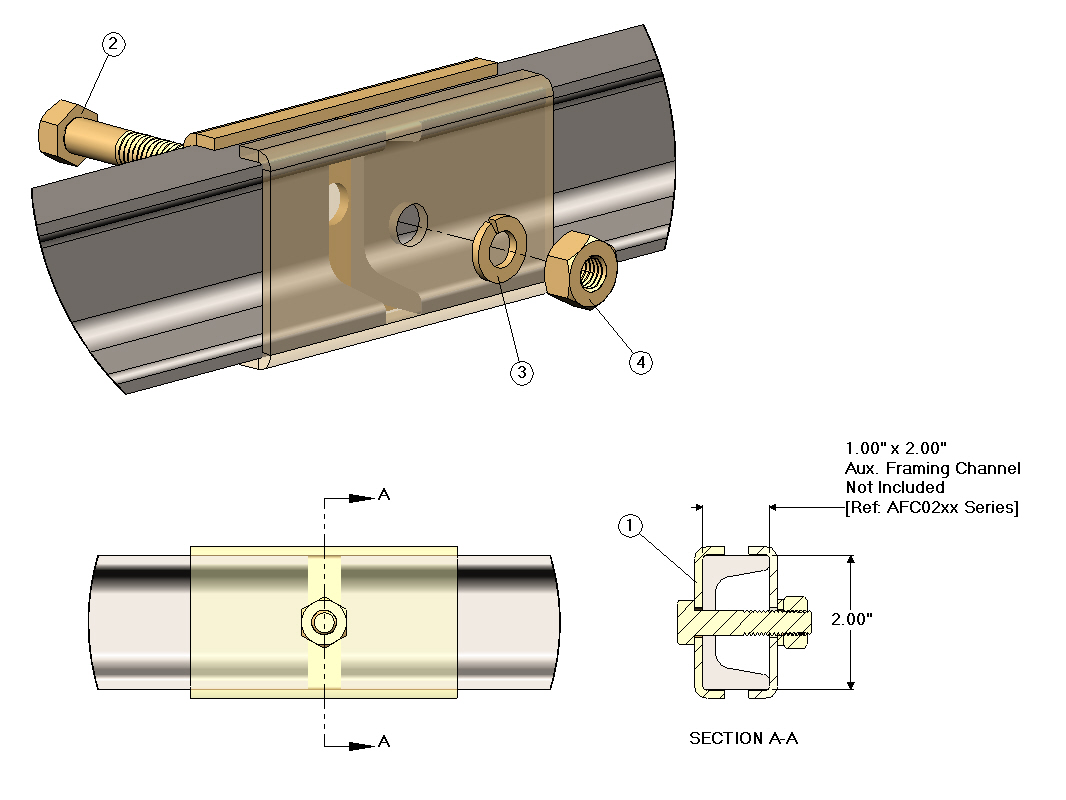

SAC0501 - Splice Clamp Kit for 2.00" x 1.00" Aux. Framing Channel - 3/8" Hardware
SAC0501 - Splice Clamp Kit for 2.00" x 1.00" A/F Channel
ItemCSF P/N#DescriptionQTY
1A1595Aux. Framing Channel Splice Clamp2
2HH10083/8-16 HHCS x 1.75" Length1
3LW1563/8" Spring Lock Washer1
4HN1463/8-16 Hex Nut1

Notes

  •  1.00" x 2.00" Aux. Framing Channel - Not Included
  •  Ref: AFC02xx Series
  •  Finish: zinc yellow
