MAF2701

MAF2701 - Aux. Framing Bar to Wall - 1/2" Hardware

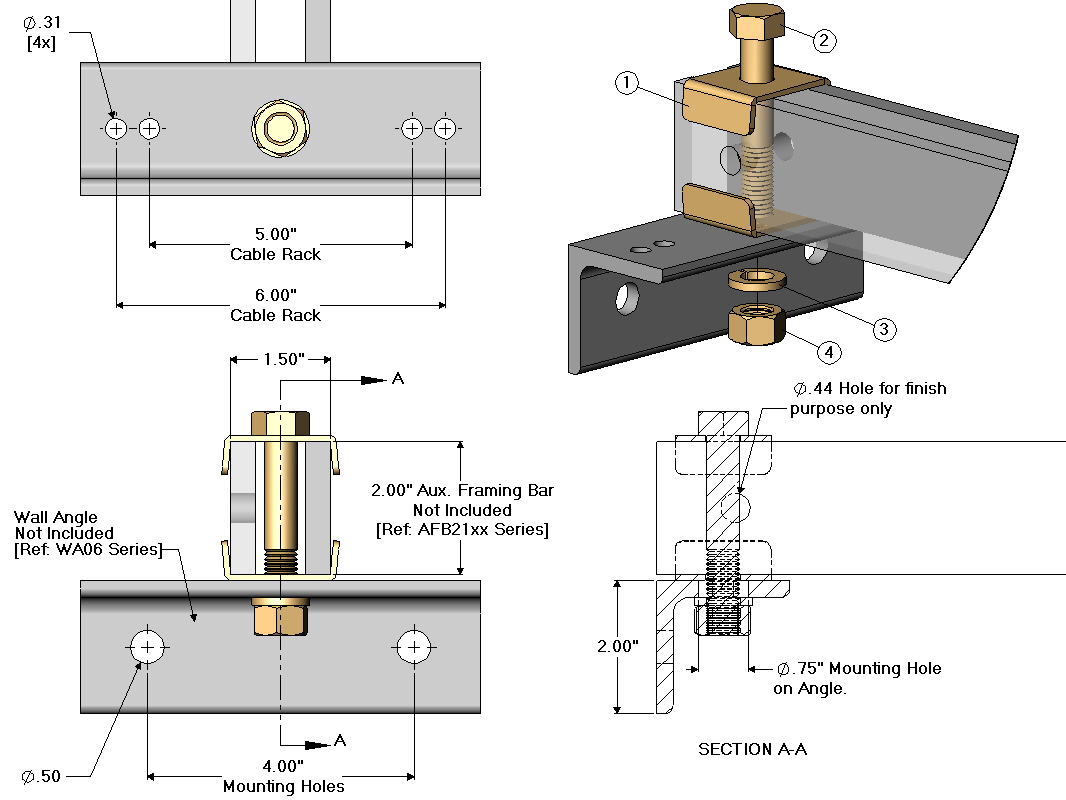

MAF2701 - Aux. Framing Bar to Wall
ItemCSF P/N#DescriptionQTY
1FC312Framing Clip2
2HH11111/2-13 HHSC x 3.00" Length1
3LW1571/2" Spring Lock Washer1
4HN1471/2-13 Hex Nut1

Notes

  •  2.00" Aux. Framing Bar - Not Included
  •  Ref: AFB21xx Series
  •  Wall Angle - Not Included
  •  Ref: WA06
  •  *WA06 also accommodates 5.00"/ 6.00" Cable Racks
  •  Finish: zinc yellow
