FTA3501

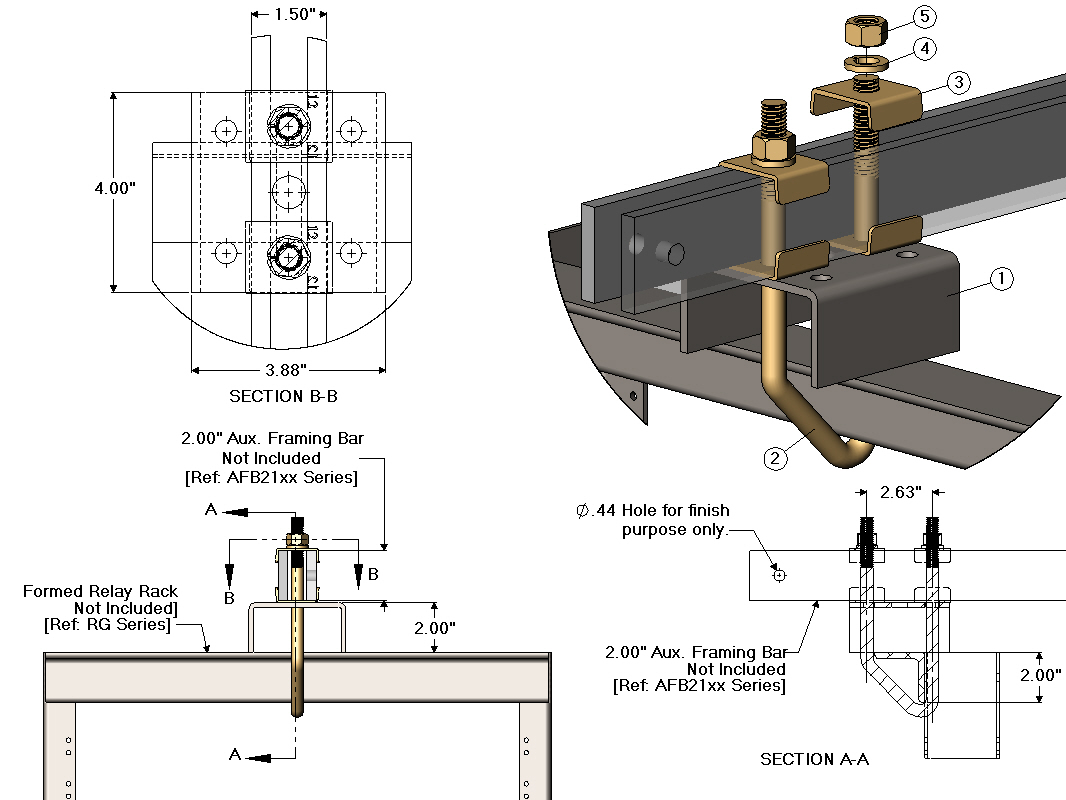

FTA3501 - Fasten Angle to Aux. Framing Bar w/ 2.00" Spacer
FTA3501 - Fasten Angle to Aux. Framing Bar w/ 2.00" Spacer
ItemCSF P/N#DescriptionQTY
1A1601Channel Spacer Bracket1
2VB255"V" Bolt1
3FC312Framing Clip4
4LW1571/2" Spring Lock Washer2
5HN1471/2-13 Hex Nut2

Notes

  •  All hardware zinc yellow.
  •  CSF P/N# A1601 is DG.
  •  RG Series - Not Included
  •  Aux. Framing Bar - Not Included
  •  Ref: AFB21xx Series
