FTA3405

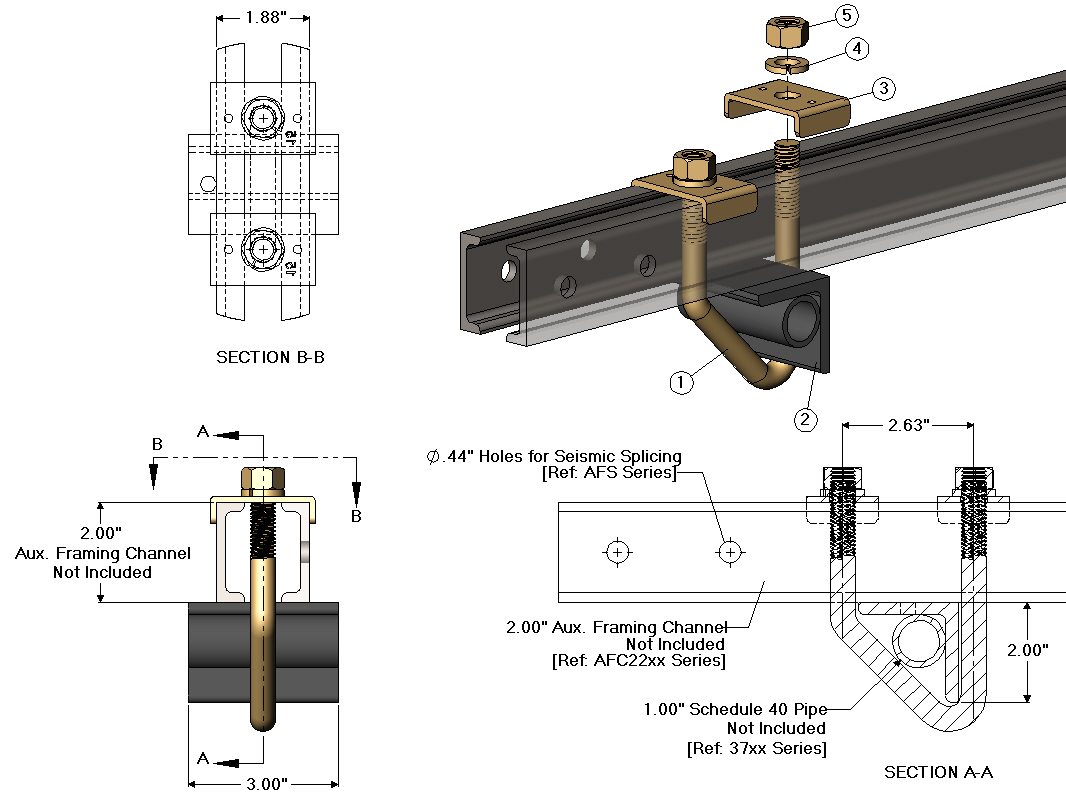

FTA3405 - Fasten 1.00" Pipe to Aux. Framing Channel to Wall
FTA3405 - Fasten 1.00" Pipe to Aux. Framing Channel to Wall
ItemCSF P/N#DescriptionQTY
1VB245"V" Bolt1
2WA032.00" x 2.00" x [1/4" THK] x 3.00" Length1
3FC315Framing Clip2
4LW1571/2" Spring Lock Washer2
5HN1471/2" Hex Nut2

Notes

  •  All Hardware zinc yellow.
  •  WA03 defaults to DG.
  •  1.00" Schedule 40 Pipe - Not Included
  •  [Ref: SP37xx Series]
  •  Aux. Framing Channel - Not Included
  •  [Ref: AFC22xx Series]
  •  For Seismic Splicing reference: AFS Series
