FTA3402

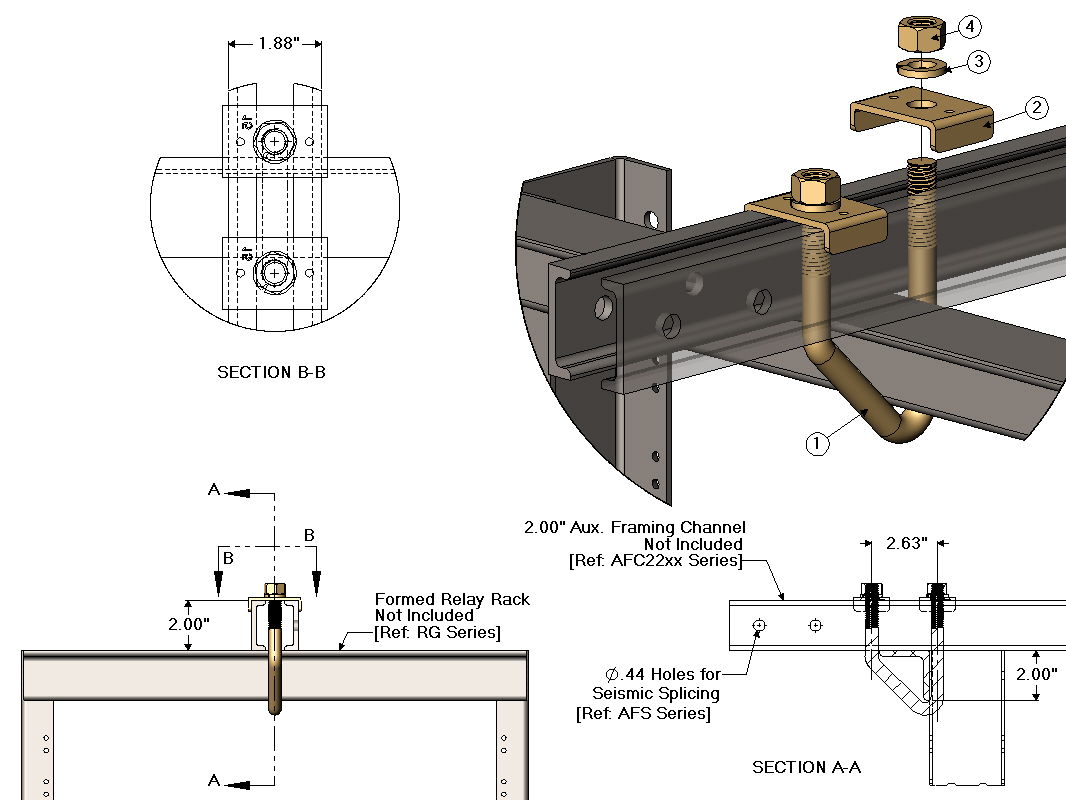

FTA3402 - Fasten Angle to Aux. Framing Channel
FTA3402 - Fasten Angle to Aux. Framing Channel
ItemCSF P/N#DescriptionQTY
1VB254"V" Bolt1
2FC315Framing Clip2
3LW1571/2" Spring Lock Washer2
4HN1471/2" Hex Nut2

Notes

  •  All hardware zinc yellow.
  •  RG Series - Not Included
  •  Aux. Framing Channel - Not Included
  •  Ref: AFC22xx Series

Download Data Sheet
