FTA3401

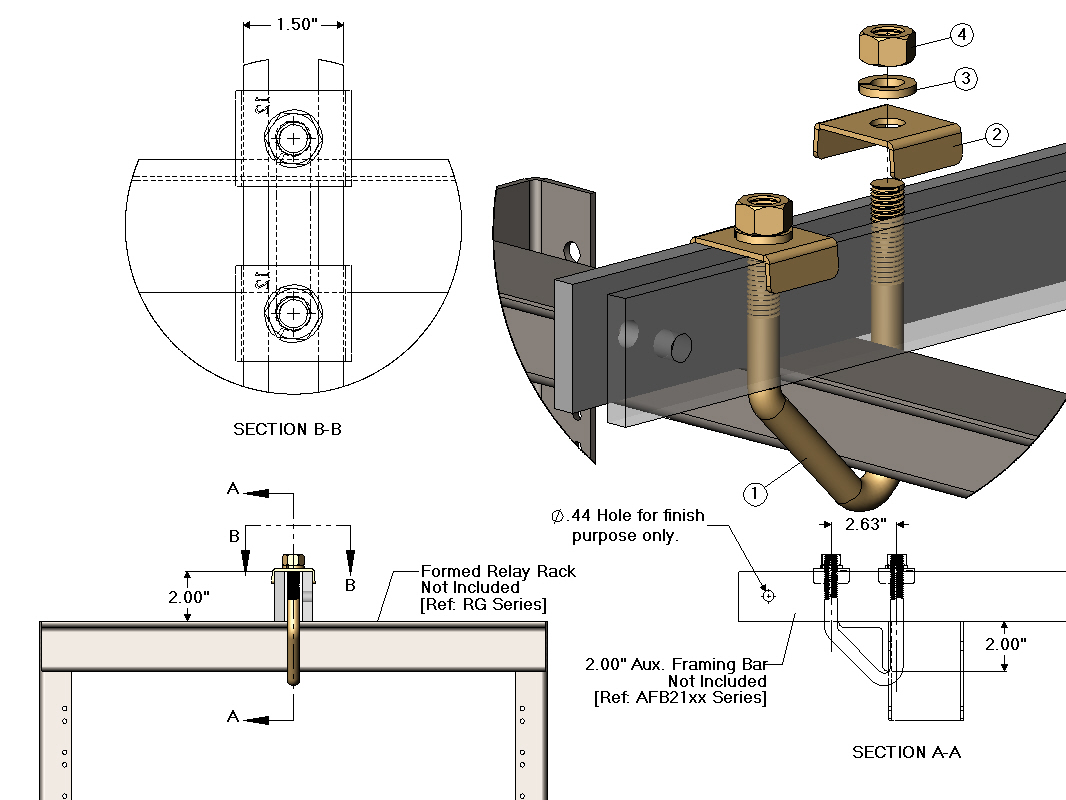

FTA3401 - Fasten Angle to Aux. Framing Bar
FTA3401 - Fasten Angle to Aux. Framing Bar
ItemCSF P/N#DescriptionQTY
1VB254"V" Bolt1
2FC312Framing Clip2
3LW1571/2" Spring Lock Washer2
4HN1471/2-13 Hex Nut2

Notes

  •  All hardware zinc yellow
  •  RG Series - Not Included
  •  Aux. Framing Bar - Not Included
  •  Ref: AFB21xx Series
