FTA1401

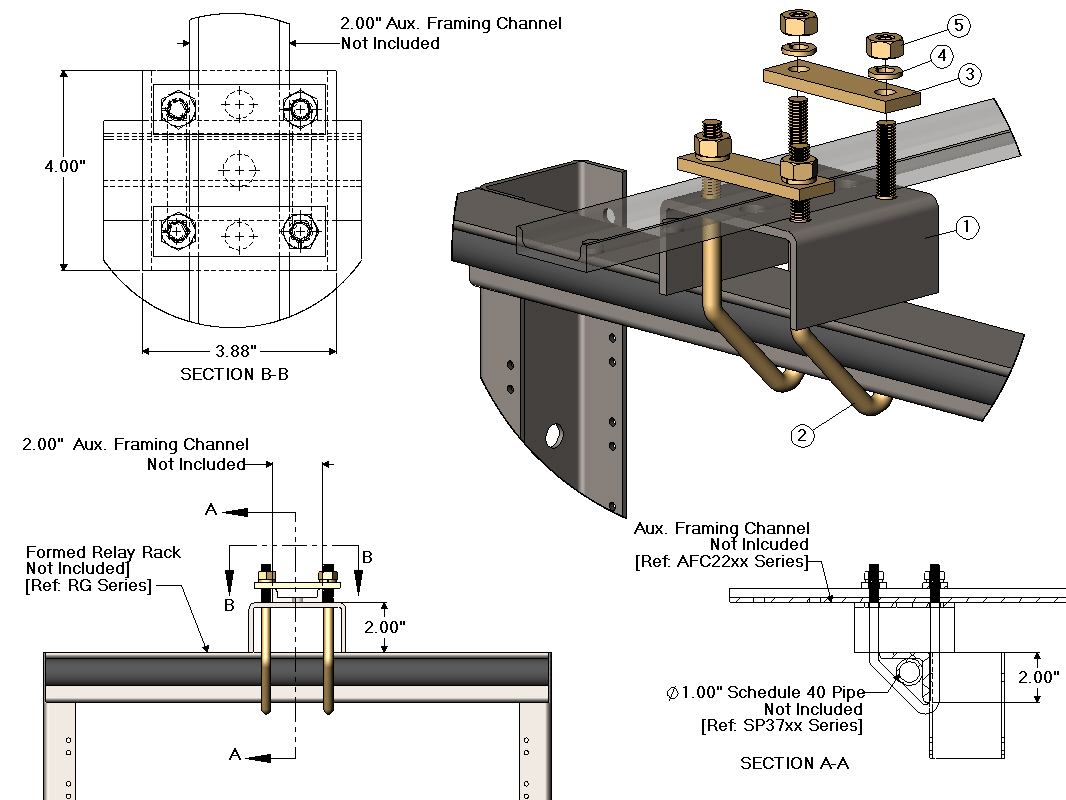

FTA1401 - Fasten Top Angle to Aux. Framing Channel w/ Spacer
FTA1401 - Fasten Top Angle to Aux. Framing Channel w/ Spacer
ItemCSF P/N#DescriptionQTY
1A1601Channel Spacer Bracket1
2VB253"V" Bolt2
3THP282Hold Down Plate2
4LW1563/8" Spring Lock Washer4
5HN1463/8-16 Hex Nut4

Notes

  •  Hardware Finish: zinc yellow
  •  Formed Relay Rack - Not Included
  •  1.00" Schedule 40 Pipe - Not Included

Download Data Sheet
