CJB6201

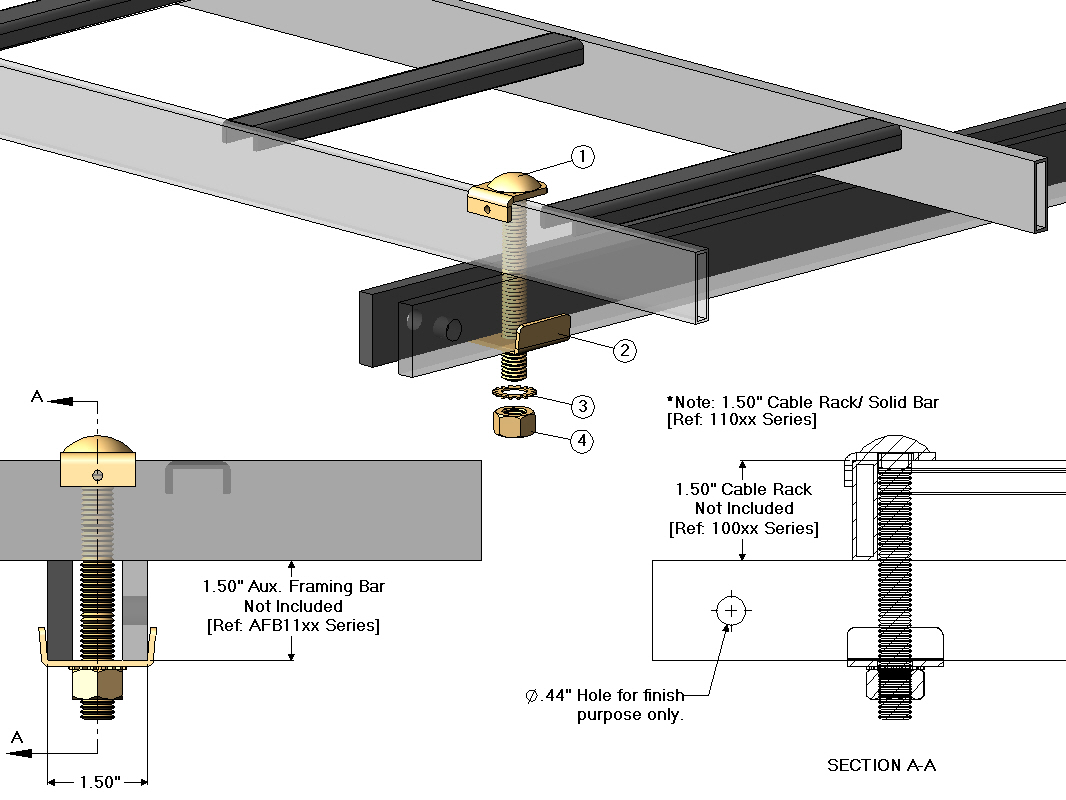

CJB6201 - "J" Bolt Clip Kit [1.50" Cable Rack to 1.50" Aux. Framing Bar]
CJB6201 - "J" Bolt Clip Kit [1.50" C/R to 1.50" Aux. Framing Bar]
ItemCSF P/N#DescriptionQTY
1CJB31/2-13 "J" Bolt x 3.88" Length1
2FC312Framing Clip1
3LWE1571/2" External Tooth Lock Washer1
5HN1471/2-13 Hex Nut1

Notes

  •  Aux. Framing Bar - Not Included
  •  Ref: AFB11xx Series
  •  1.50" Cable Rack/ Tubular - Not Included
  •  Ref: 100xx Series
  •  Finish: zinc yellow

Download Data Sheet
