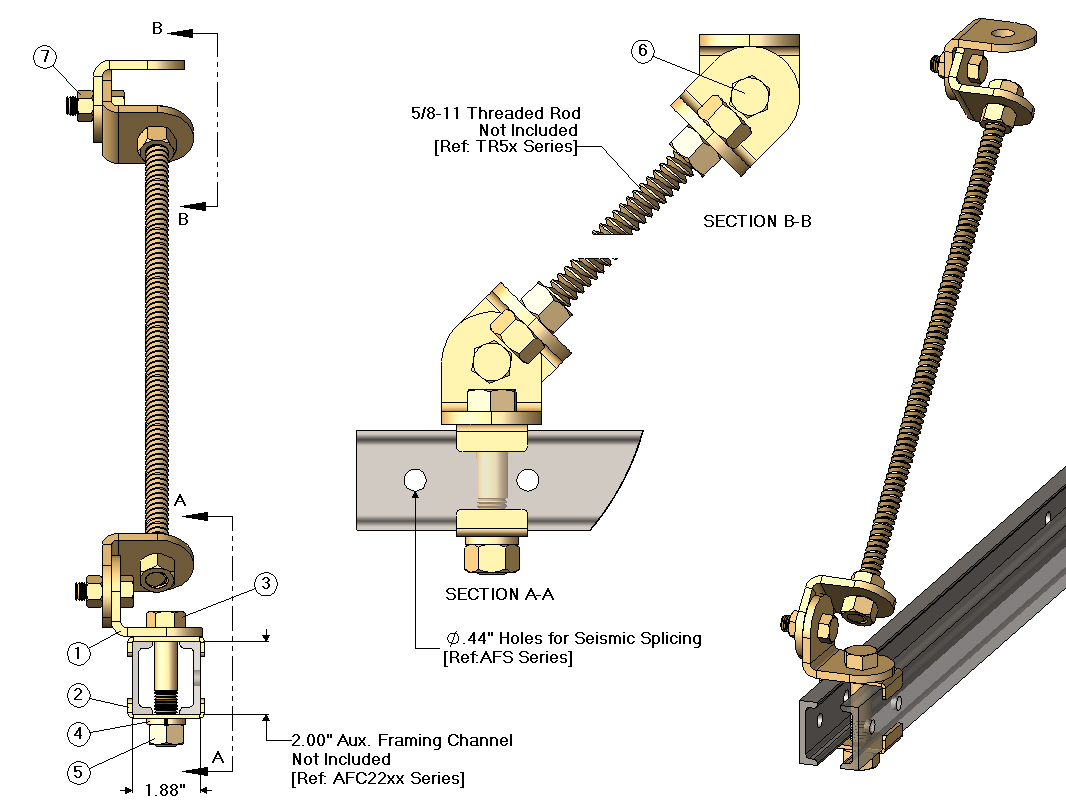

BAF4002 - Auxiliary Framing Channel Brace Kit [Ceiling/ Wall]
BAF4002 - Auxiliary Framing Channel Brace Kit [Ceiling/ Wall]
ItemCSF P/N#DescriptionQTY
1BB1Bracing Bracket4
2FC316Framing Clip2
3HH12105/8-11 HHCS x 3.25" Length1
4LW1585/8" Spring Lock Washer1
5HN1485/8-11 Hex Nut5
6HH11041/2-13 HHCS x 1.25" Length2
7HN1471/2-13 Hex Nut2

Notes

  •  Aux. Framing Channel - Not Included
  •  Ref: AFC22xx Series
  •  5/8-11 Threaded Rod - Not Included
  •  Ref: TR5x Series
  •  Finish: zinc yellow
