APB10K

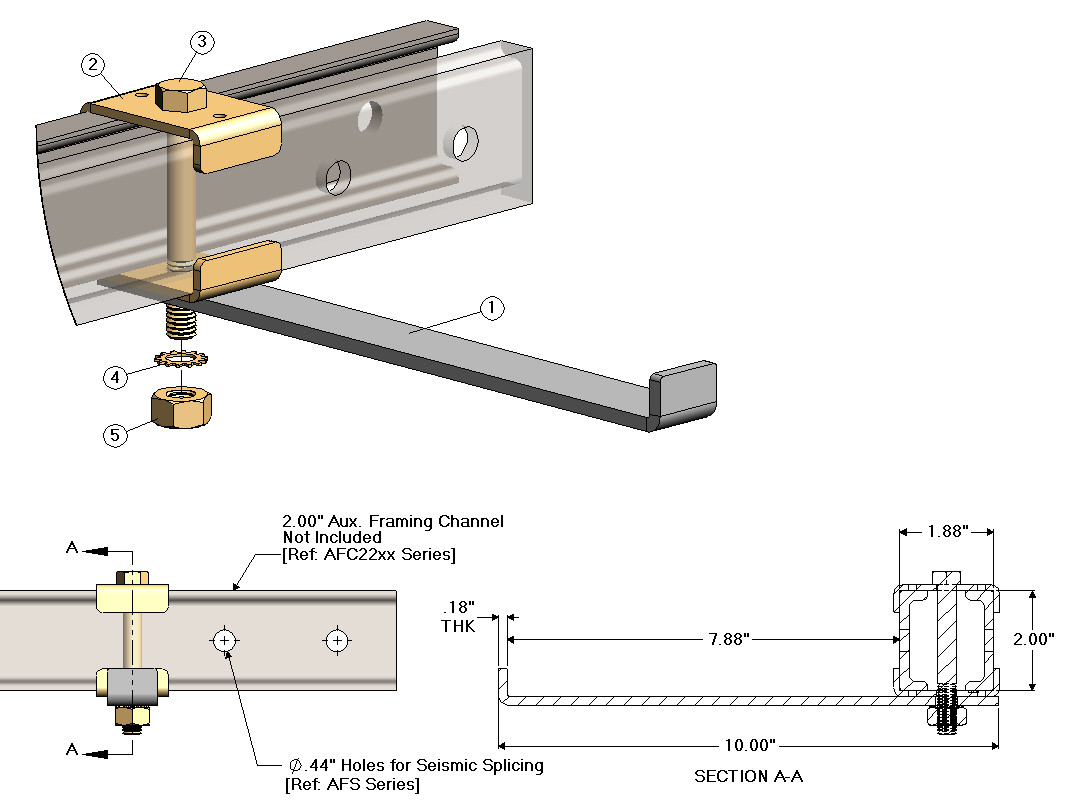

APB10K - 10.00" Aux. Framing Channel Power Bracket
APB10K - 10.00" Aux. Framing Channel Power Bracket
ItemCSF P/N#DescriptionQTY
1APB1010.00" Aux. Channel Power Bracket1
2FC314Framing Clip2
3HH10133/8-16 HHCS x 3.00" Length1
4LWE1563/8" External Tooth Lock Washer1
5HN1463/8-16 Hex Nut1

Notes

  •  Finish: ABP10 available in DG.
  •  All hardware zinc yellow.
  •  Aux. Framing Channel - Not Included
  •  Ref: AFC22xx Series
