AFS825

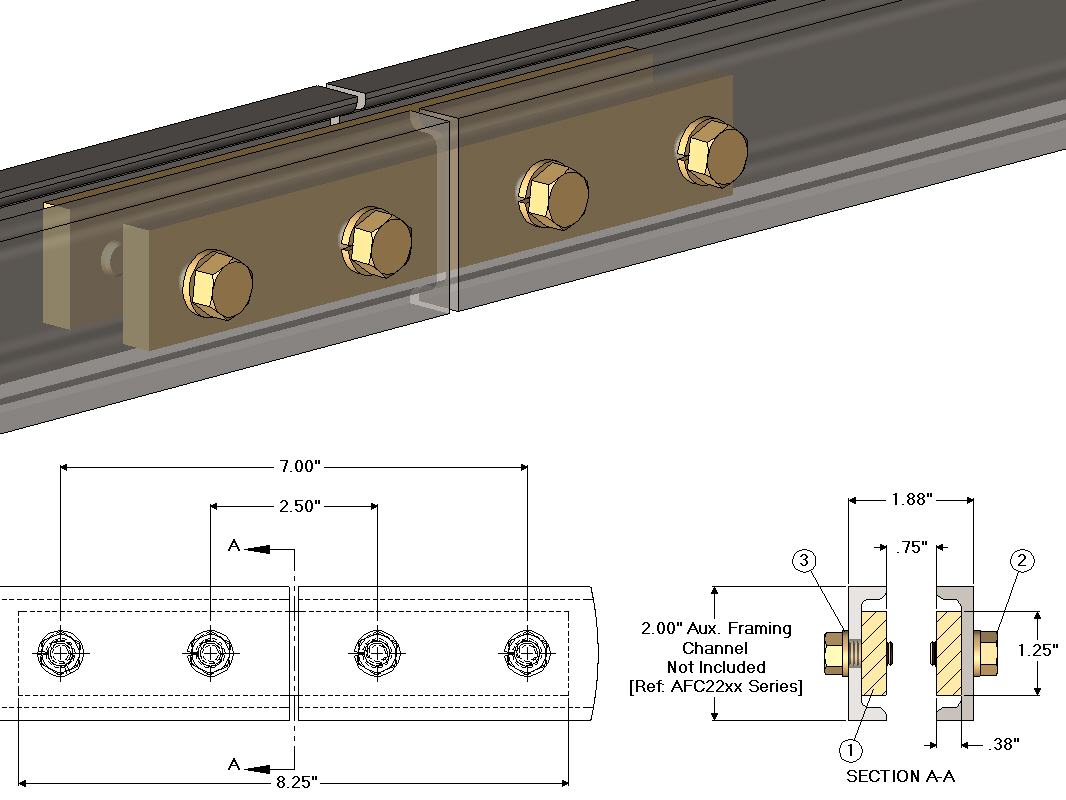

AFS825 - Aux. Framing Channel Splice Bar
AFS825 - Aux. Framing Channel Splice Bar
ItemCSF P/N#DescriptionQTY
1AFS825BSplice Bar2
2HH10033/8-16 HHCS x 3/4" Length8
3LW1563/8" Spring Lock Washer8
4LWE1563/8" External Tooth Lock Washer8

Notes

  •  2.00" Aux. Framing Channel - Not Included
  •  Ref: AFC22xx Series
  •  LWE156 - 3/8" External Tooth Lock Washer - Not Shown
  •  Finish: zinc yellow
