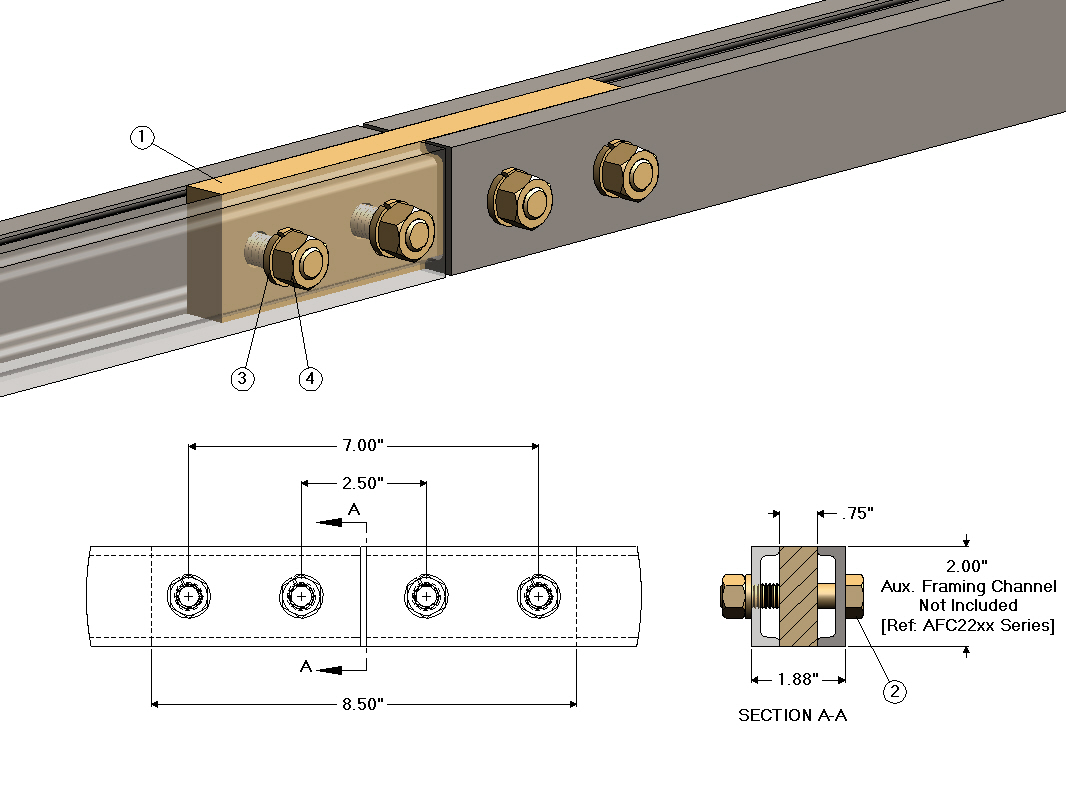

AFS4602 - Aux. Framing Channel Splice Rigid
AFS4602 - Aux. Framing Channel Splice Rigid
ItemCSF P/N#DescriptionQTY
1A6168Brace Bar1
2HH11091/2-13 HHCS x 2.50" Length4
3LW1571/2" Spring Lock Washer4
4LWE1471/2-13 Hex Nut4

Notes

  •  Notes:
  •  When using this kit w/ CSF AFC22xx Series Aux. Framing Channel, holes in channel will need to be drilled to .56" to accommodate the .50" hardware in this kit.
  •  2.00" Aux. Framing Channel - Not Included
  •  Ref: AFC22xx Series
  •  Finish: zinc yellow
