AFJ2401

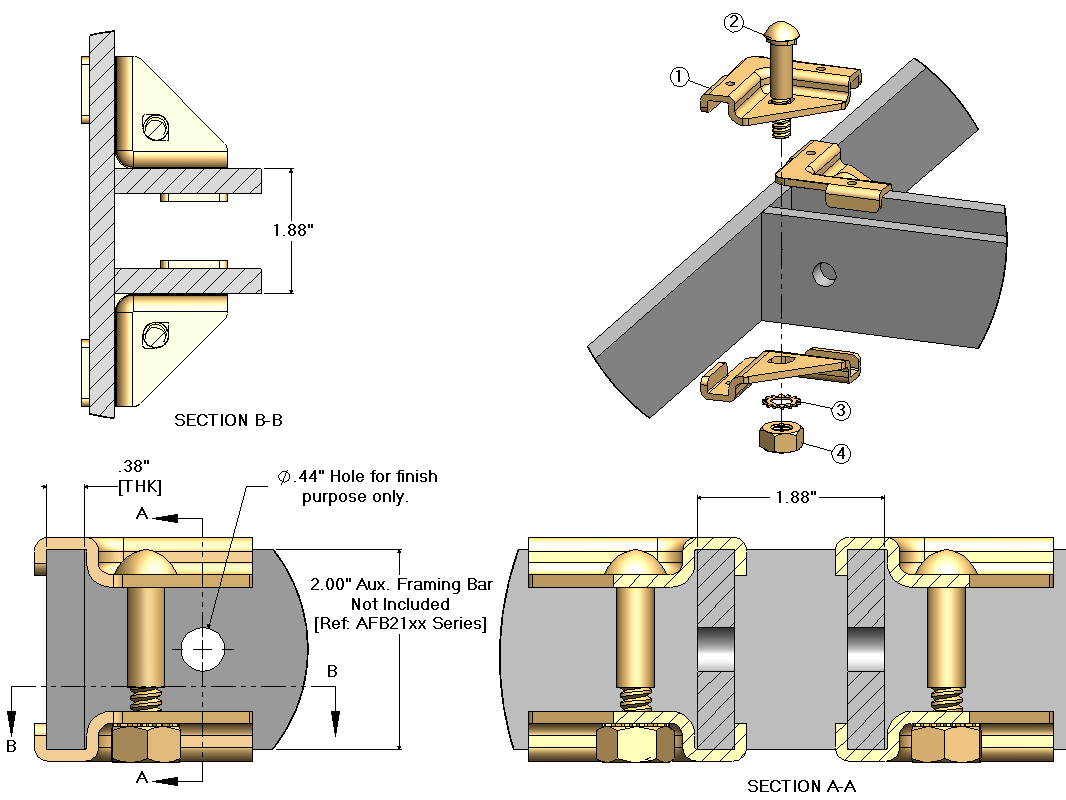

AFJ2401 - Aux. Framing Bar "T" Junction w/ CC22
AFJ2401 - Aux. Framing Bar "T" Junction w/ CC22
ItemCSF P/N#DescriptionQTY
1CCCorner Clamp Bracket4
2CB1703/8-16 Connection Bolt2
3LWE1563/8" External Tooth Lock Washer2
4HN1463/8-16 Hex Nut2

Notes

  •  2.00" Aux. Framing Bar - Not Included
  •  Ref: AFB21xx Series
  •  Finish Code: Zinc and Yellow
