AFF280x Series

AFF280x Series - Aux. Frame Finishing Clip Kit

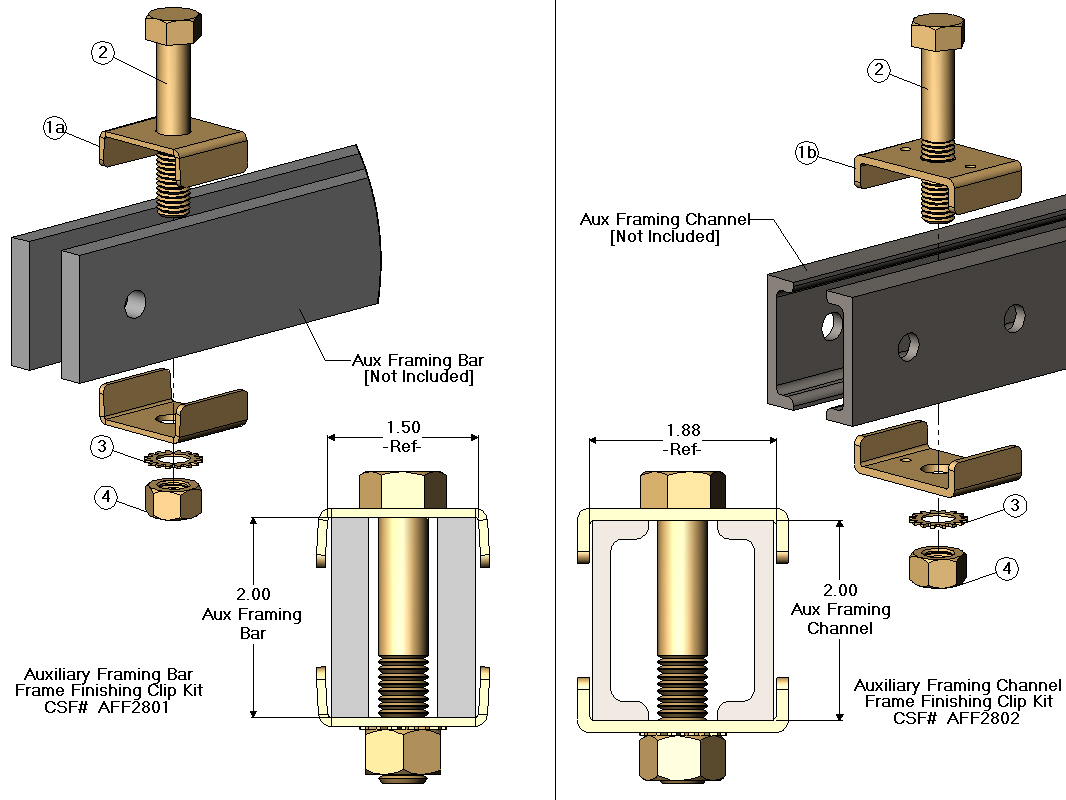

AFF280x Series - Auxiliary Frame Finishing Clip Kit
ItemCSF P/N#DescriptionAFF2801 (Bar)AFF2802 (Channel)
1aFC312Framing Clip [Auxiliary Bar]20
1bFC315Framing Clip [Auxiliary Channel]02
2HH11101/2-13 HHCS X 2.7511
3LWE1571/2" External Tooth Lock Washer11
4HN1471/2-13 Hex Nut11

Notes

  •  Finish: zinc yellow
  •  All hardware is zinc yellow
  •  Aux Framing Bar/ Channel - Not Included
  •  [Ref: AFB22xx Series] Aux. Framing Bar
  •  [Ref: AFC22xx Series] Aux. Framing Channel
