ACS08KCN - Splice [Continuity]

ACS08KCN - Aux. Framing Channel Splice Kit [Continuity] - 5/8" Hardware

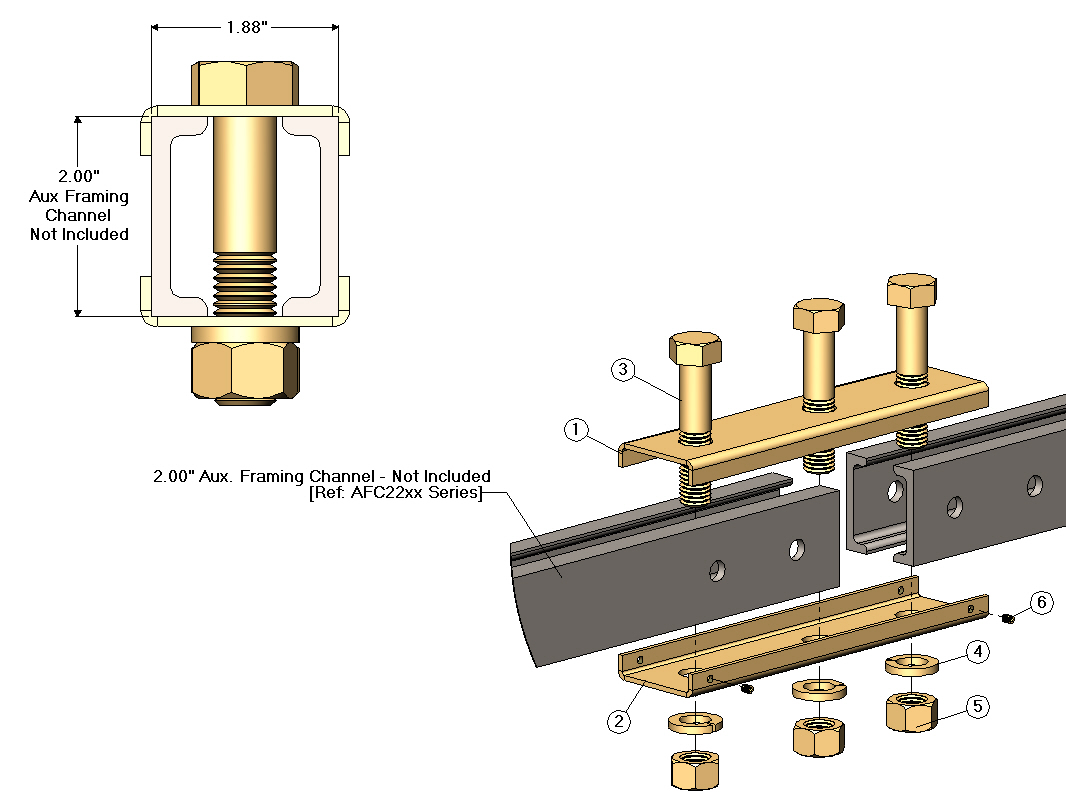

ACS08KCN - Aux Framing Channel Splice Kit [Continuity]
ItemCSF P/N#DescriptionQTY
1ACS08Aux. Framing Channel Splice1
2ACS08CNAux. Framing Channel Splice [Continuity]1
3HH12095/8-11 HHCS X 3.00"3
4LW1585/8" Spring Lock Washer3
5HN1485/8-11 Hex Nut3
6SS030310-32 X 3/16 Socket Set Screw2


  •  Installation technician should check connections with a OHM meter to verify continuity.
  •  Apply No-Ox to set screw and point of attachment to prevent oxidation of connection
  •  2.00" Aux. Framing Channel - Not Included
  •  Ref: AFC22xx Series
  •  Finish: zinc yellow
