ACB4

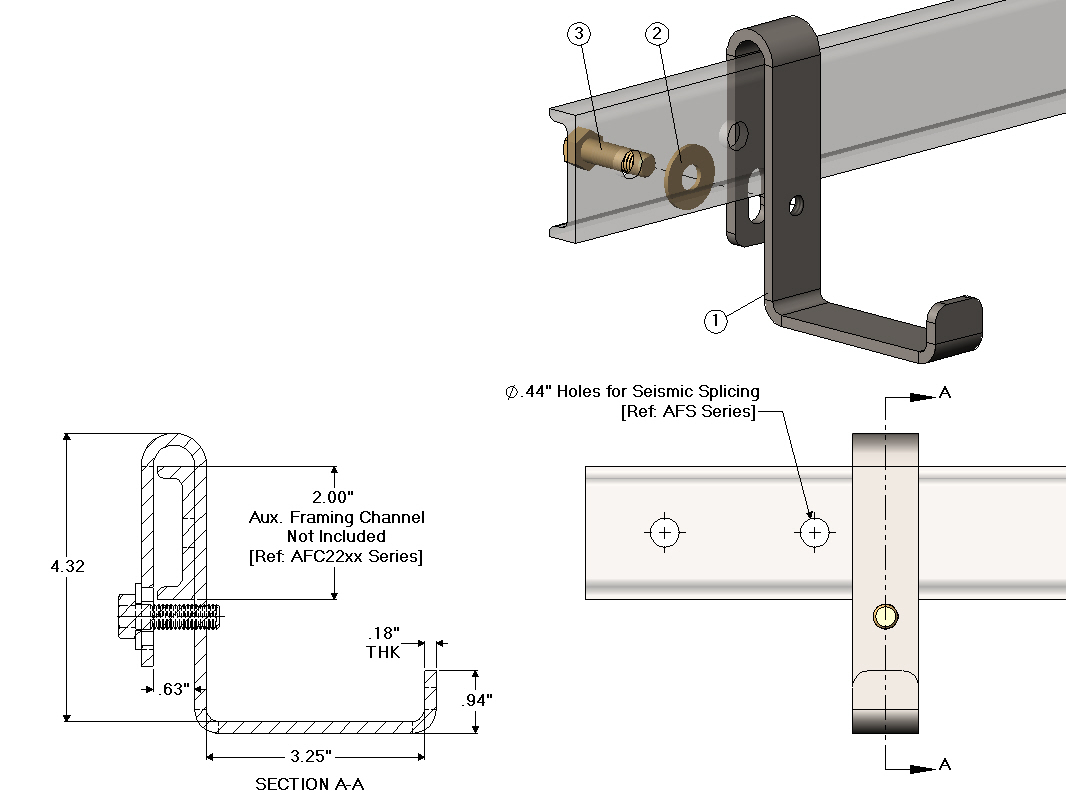

ACB4 - Aux. Framing Channel Bracket - 3/8" Hardware
ACB4 - Aux. Framing Channel Bracket
ItemCSF P/N#DescriptionQTY
1ACB4A/F Channel Bracket1
2FW1663/8" Flat Washer1
3HH10063/8-16 HHCS x 1.25" Length1

Notes

  •  Finish: Available in DG and ZY
  •  All hardware is zinc yellow.
  •  2.00 Aux. Framing Channel - Not Included
  •  Ref: AFC22xx Series
