RH Series

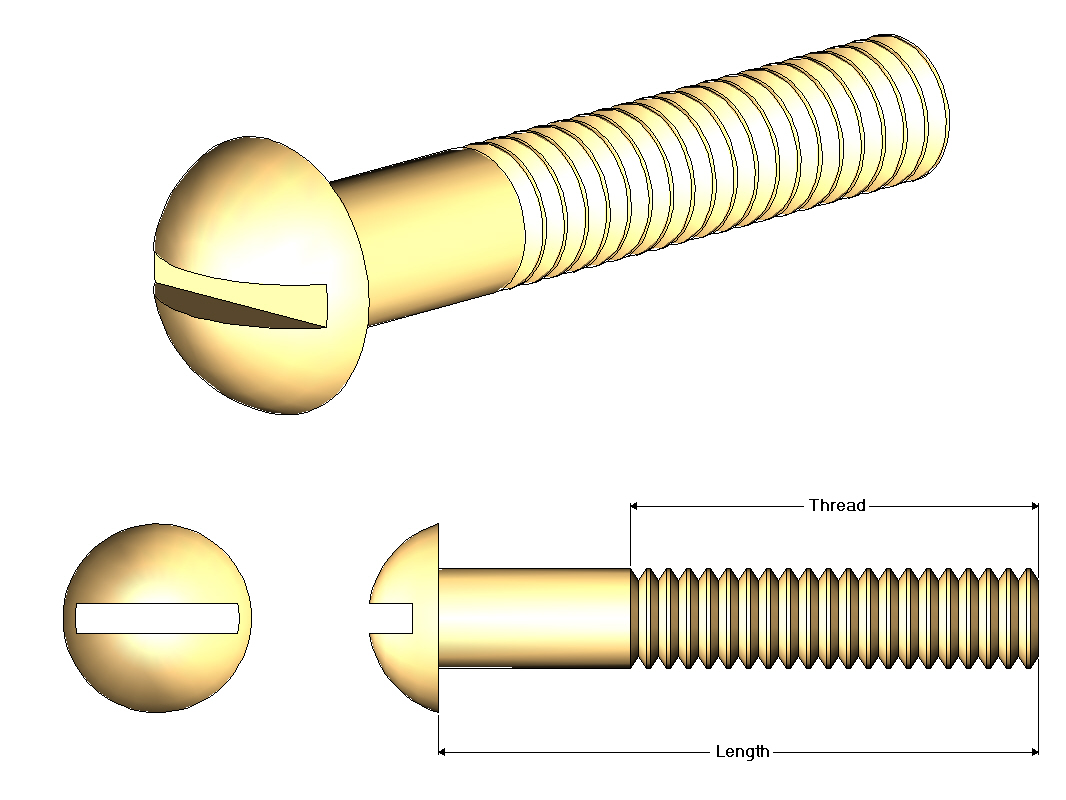

Round Head M/S Selection
#8-32 Round Head Machine Screw Selection
CSF P/N#LengthThread
RH02013/16"Full
RH02021/4"Full
RH02035/16"Full
RH02043/8"Full
RH02057/16"Full
RH02061/2"Full
RH02075/8"Full
RH02083/4"Full
RH02097/8"Full
RH02101.00"Full
RH02111.12"Full
RH02121.25"Full
RH02131.50"Full
RH02141.75"Full
RH02152.00"Full
RH02162.25"1.75"
RH02172.50"1.75"
#10-32 Round Head Machine Screw Selection
CSF P/N#LengthThread
RH03011/4"Full
RH03025/16"Full
RH03033/8"Full
RH03047/16"Full
RH03051/2"Full
RH03065/8"Full
RH03073/4"Full
RH03087/8"Full
RH03091.00"Full
RH03101.12"Full
RH03111.25"Full
RH03121.50"Full
RH03131.75"Full
RH03142.00"Full
RH03152.25"1.75"
RH03162.50"1.75"
RH03172.75"1.75"
RH03183.00"1.75"
1/4-20 Round Head Machine Screw Selection
CSF P/N#LengthThread
RH05015/16"Full
RH05023/8"Full
RH05031/2"Full
RH05045/8"Full
RH05053/4"Full
RH05067/8"Full
RH05071.00"Full
RH05081.12"Full
RH05091.25"Full
RH05101.50"Full
RH05111.75"Full
RH05122.00"Full
RH05132.25"1.50"
RH05142.50"1.75"
RH05152.75"1.75"
RH05163.00"1.75"

Notes

  •  Finish Code: zinc yellow
