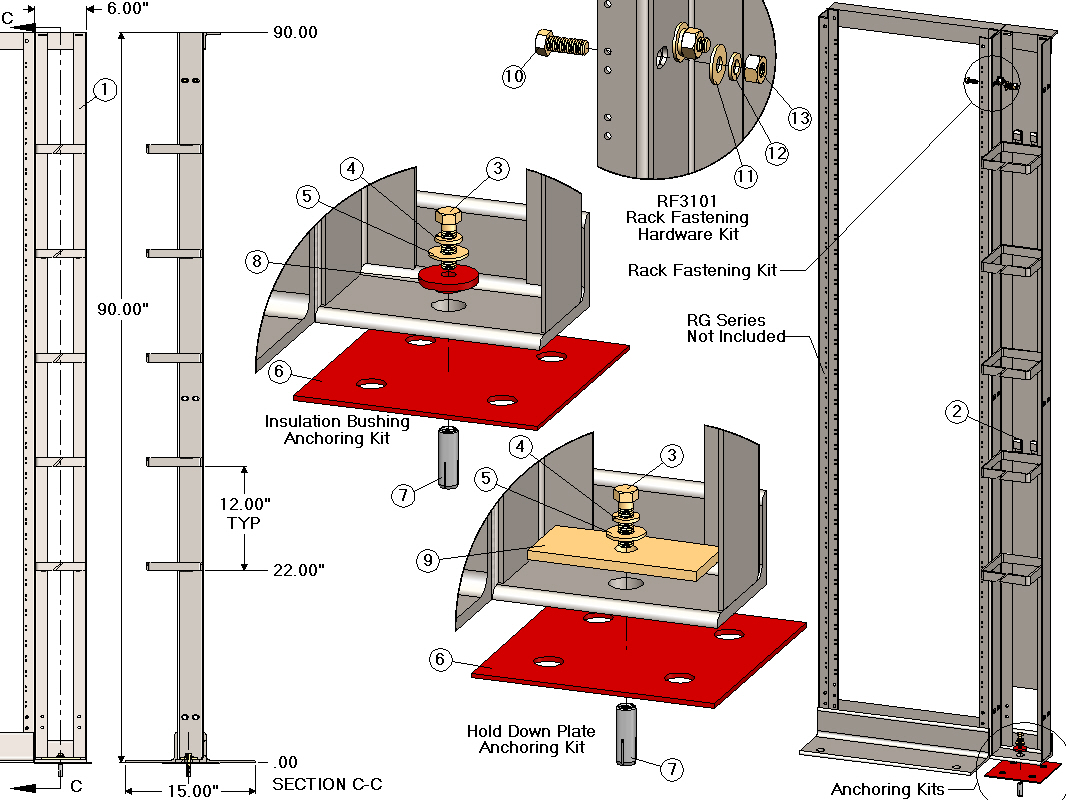

CS4902xxK - Cable Section Kit

CS4902xxK - Cable Section Framework w/ Cover Kit x 90.00" Height
Cable Section Framework w/ Cover Kit
ItemCSF P/N#DescriptionQTY
1CS27Cable Section Framework - 6.00" x 90.00"1
2CSC27Cable Section Framework Cover1
Cable Section Framework Hardware Kit
ItemCSF P/N#DescriptionQTY
3HH10063/8-16 HHCS x 1.25" Length1
4LW1563/8" Spring Lock Washer1
5FW1663/8" Flat Washer1
6IP7068Insulation Pad - 6.50" x 6.50"1
7DIA373/8-16 Drop In Anchor1
8IB6202Insulation Bushing1
9HDP2450Hold Down Plate1
RF3101 - Rack Fastening Hardware Kit
ItemCSF P/N#DescriptionQTY
10HH10053/8-16 HHCS x 1.00" Length6
11FW1663/8" Flat Washer6
12LW1563/8" Spring Lock Washer6
13HN1463/8-16 Hex Nut6

Notes
