ICR Series

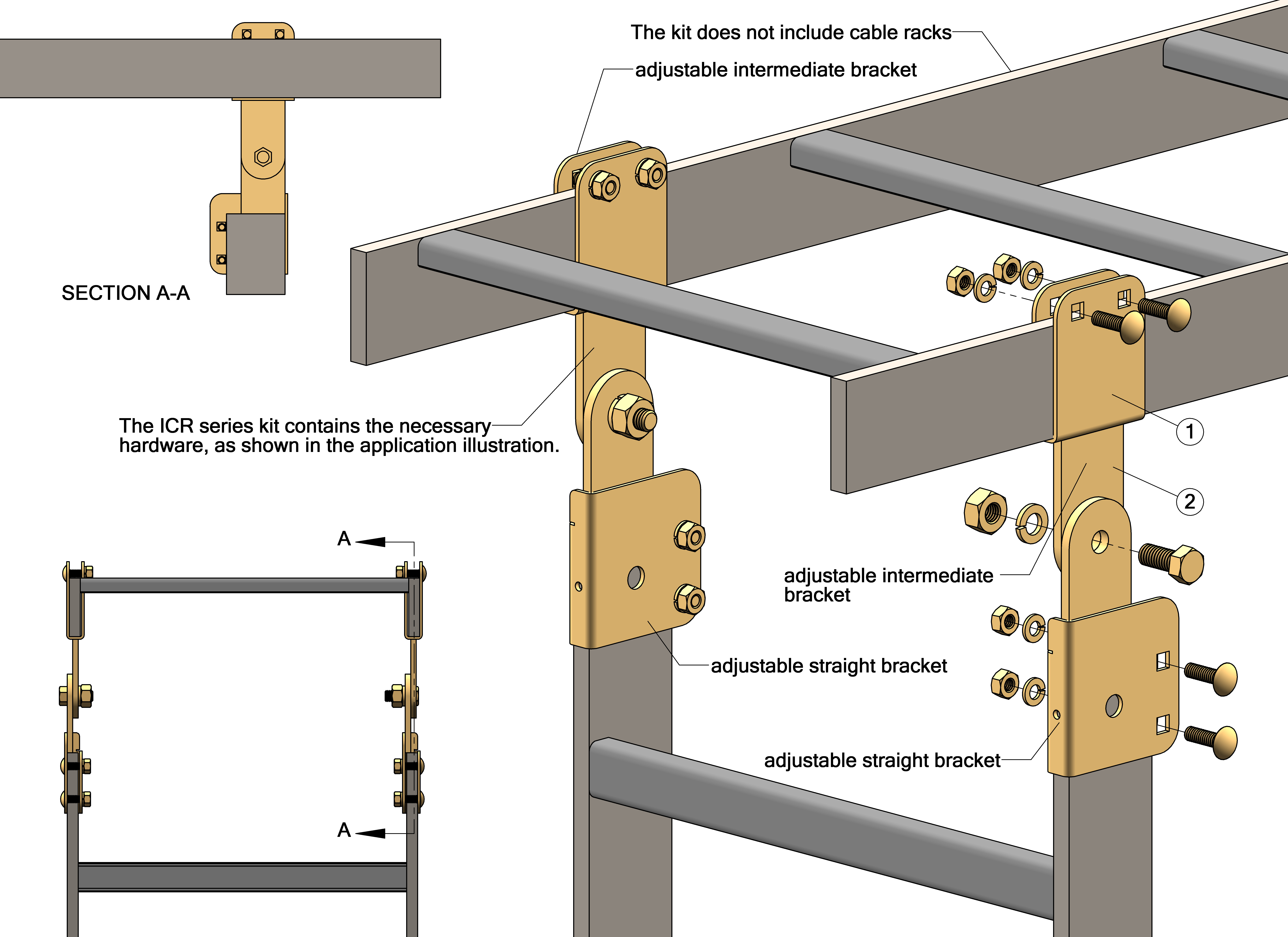

ICR Series - Adjustable Intermediate Cable Rack Kit
ICR12 - 1.50" Cable Rack Stringer
ItemCSF P/N#Description
1SCA1BAdjustable Straight Bracket2
2ICR1BAdjustable Intermediate Bracket2
ICR22 - 2.00" Cable Rack Stringer
ItemCSF P/N#Description
1SCA2BAdjustable Straight Bracket2
2ICR2BAdjustable Intermediate Bracket2
AC Hardware - Adjustable Clamp Kit Hardware
ItemCSF P/N#Description
3HH10043/8-16 Hex Head Cap Screw x .88" Length2
4LW1563/8" Spring Lock Washer2
5HN1463/8-16 Hex Nut2
6CB06041/4-20 x .88" Length - Carriage Bolt8
7LW1541/4" Spring Lock Washer8
8HN1441/4-20 Hex Nut8
