EBA Series

EBA Series - End Bar Assembly Kit
1.50" Height - End Bar Assembly Kit
CSF P/N#Cable Rack Width
EBA114xxK12.00"
2.00" Height - End Bar Assembly Kit
CSF P/N#Cable Rack Width
EBA214xxK12.00"

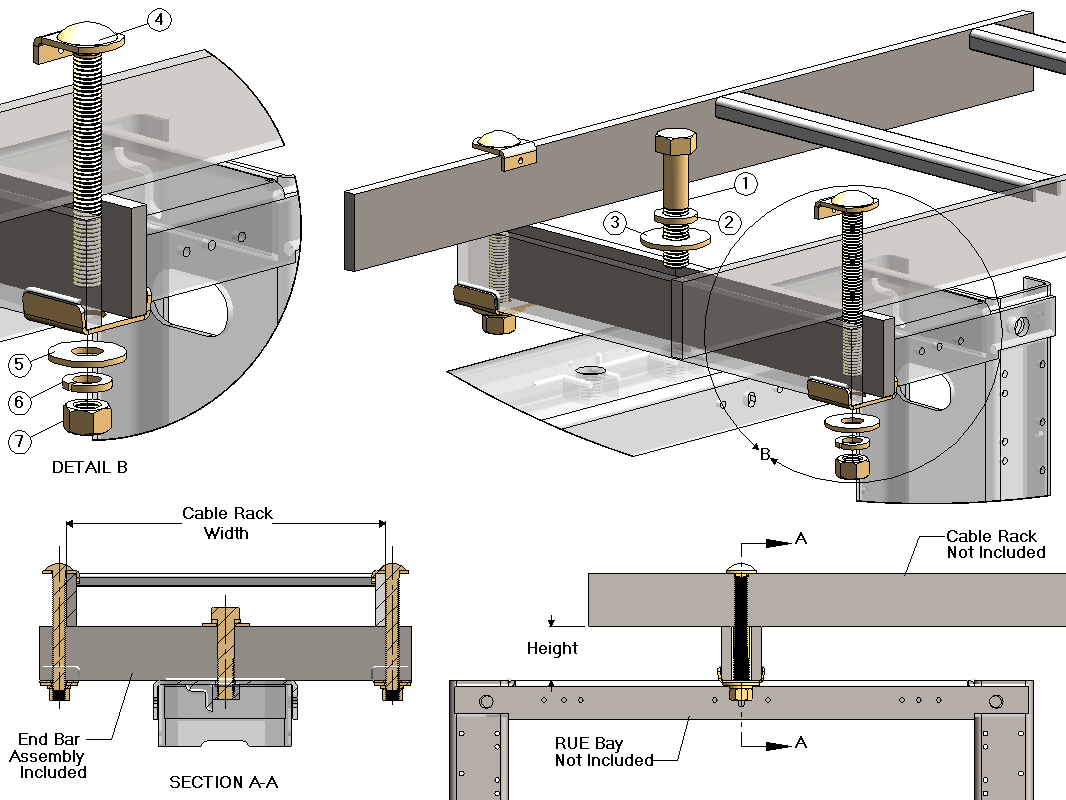

1.50" Height - End Bar Assembly - Hardware Kit
ItemCSF P/N#DescriptionQTY
1HH12095/8-11 HHCS x 3.00" Length1
2LWE1585/8" External Tooth Lock Washer1
3FW1685/8" Flat Washer1
4CJB31/2-13 J Bolt Clip x 3.88" Length2
5FW1671/2" Flat Washer2
6LWE1571/2" Spring Lock Washer2
7HN1471/2-13 Hex Nut2
2.00" Height - End Bar Assembly - Hardware Kit
ItemCSF P/N#DescriptionQTY
1HH12095/8-11 HHCS x 3.00" Length1
2LWE1585/8" External Tooth Lock Washer1
3FW1685/8" Flat Washer1
4CJB41/2-13 J Bolt Clip x 4.38" Length2
5FW1671/2" Flat Washer2
6LWE1571/2" Spring Lock Washer2
7HN1471/2-13 Hex Nut2

Notes

  •  EBA/ EBW Series finishes: CB , DG
  •  Cable Rack - Not Included
  •  RUE Bay - Not Included
  •  Other widths and finishes available upon request, view Finish Codes.
  •  EBA Series includes 1/2" - J Bolt Hardware.
  •  EBW Series includes 5/8" - J Bolt Hardware.
