CC22DW

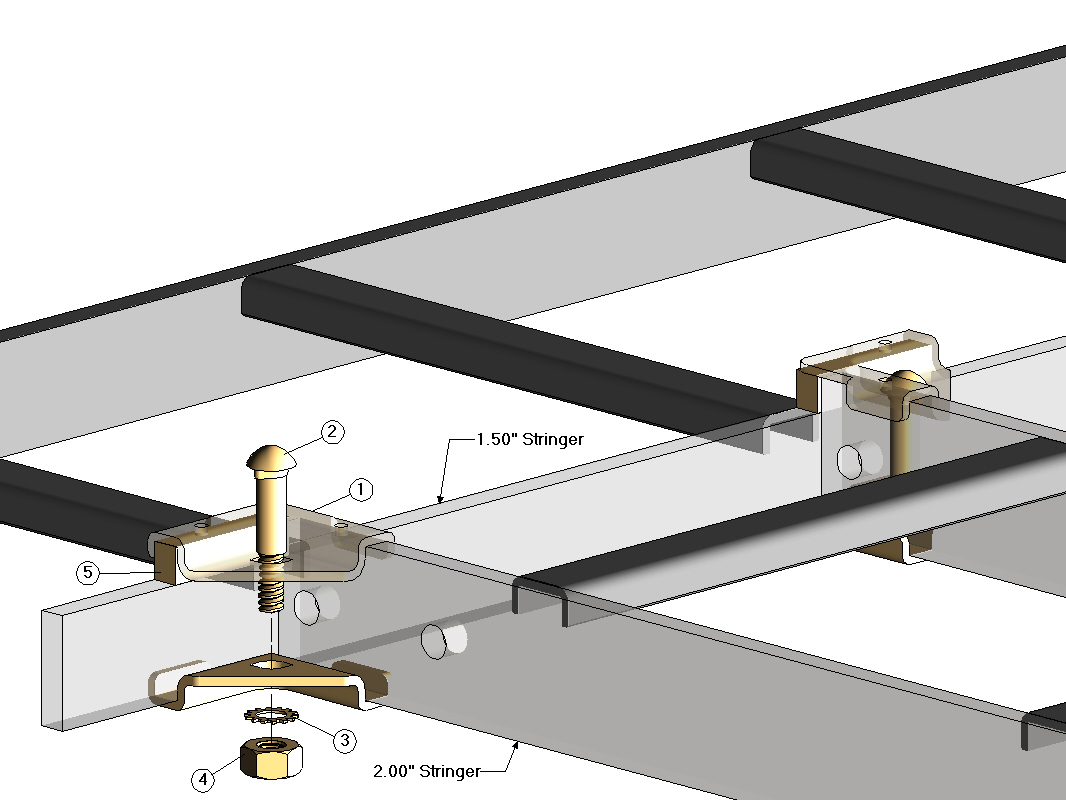

CC22DW - Corner Clamp Kit - 2.00" C/R to 1.50" C/R - Pair
CC22DW - Corner Clamp Kit - 2.00" C/R to 1.50" C/R - Pair
ItemCSF P/N#DescriptionQTY
1CCCorner Clamp Bracket4
2CB1703/8-16 Connection Bolt x 1.88" Length2
3LWE1563/8" External Tooth Lock Washer2
4HN1463/8-16 Hex Nut2
52243Filler Block2

Notes

Download Data Sheet
