CC1

CC1 - Corner Clamp Kit - 1.50" Cable Rack
CC1 - Corner Clamp Kit - 1.50" Cable Rack

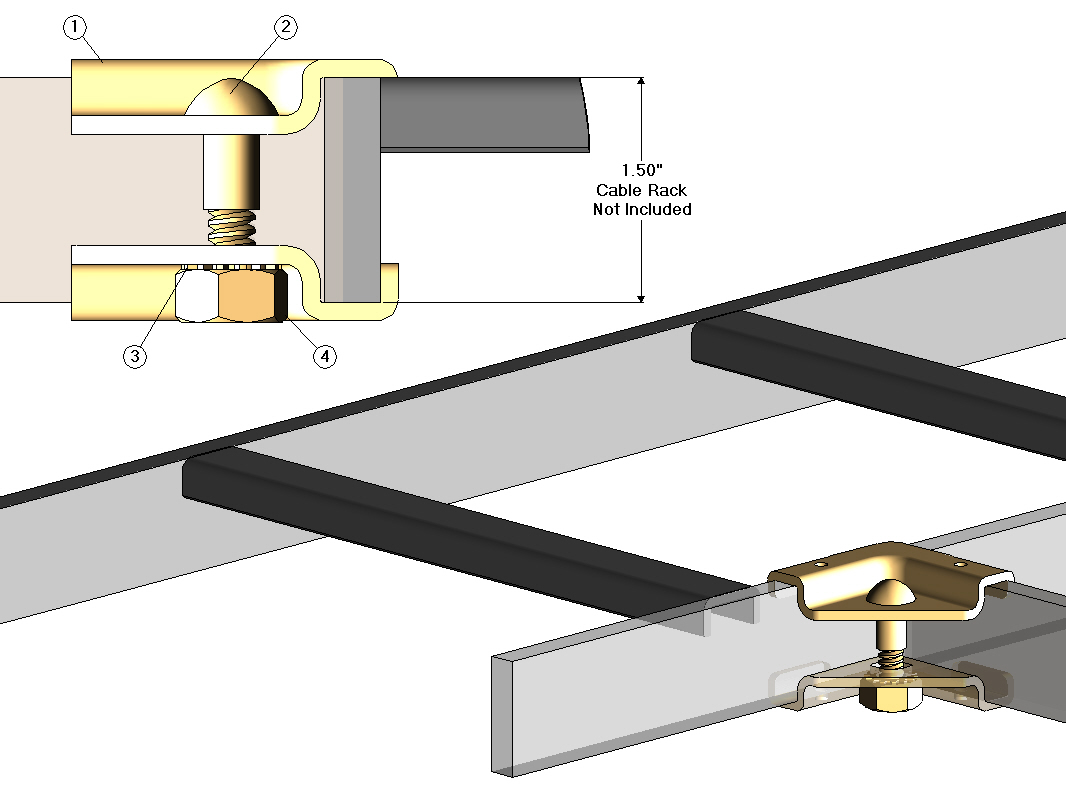

Item#QTYCSF P/N#Description
12CCCorner Clamp Bracket
21CB1713/8-16 Connection Bolt x 1.38" Length
31LWE1563/8" External Tooth Lock Washer
41HN1463/8-16 Hex Nut

Notes

  •  Corner Clamps fit Tube/ Bar and Channel Stringer.
  •  Cable Rack - Not Included
  •  Finish Code: zinc yellow

Download Data Sheet
