ACR Series

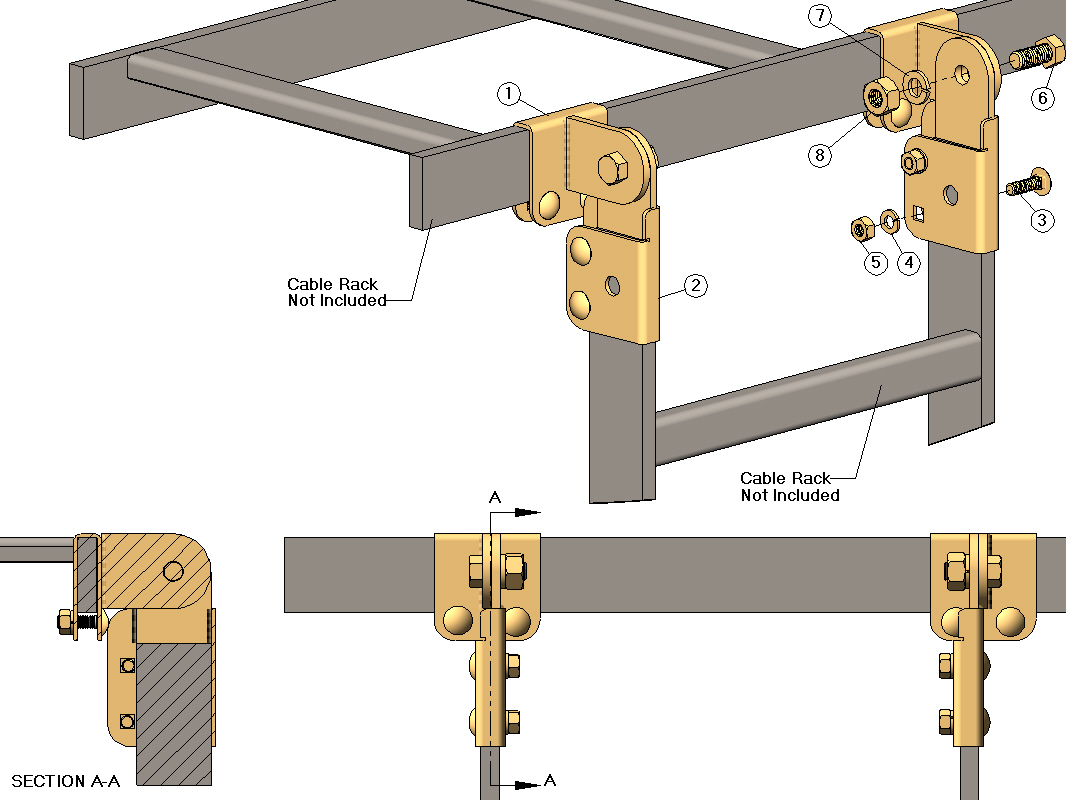

ACR Series - Adjustable T Junction Kit
ACR12 - Adjustable T Junction Kit for 1.50" Cable Rack Stringer
ItemCSF P/N#DescriptionQTY
1ACR1BAdjustable T Bracket2
2SCA1BAdjustable Straight Bracket2
ACR22 - Adjustable T Junction Kit for 2.00" Cable Rack Stringer
ItemCSF P/N#DescriptionQTY
1ACR2BAdjustable T Bracket2
2SCA2BAdjustable Straight Bracket2
AC Hardware - Adjustable Clamp Kit Hardware
ItemCSF P/N#DescriptionQTY
3CB06041/4-20 x .88" Length - Carriage Bolt8
4LW1541/4" Spring Lock Washer8
5HN1441/4-20 Hex Nut8
6HH10043/8-16 Hex Head Cap Screw x .88" Length2
7LW1563/8" Spring Lock Washer2
8HN1463/8-16 Hex Nut2
