STA1201

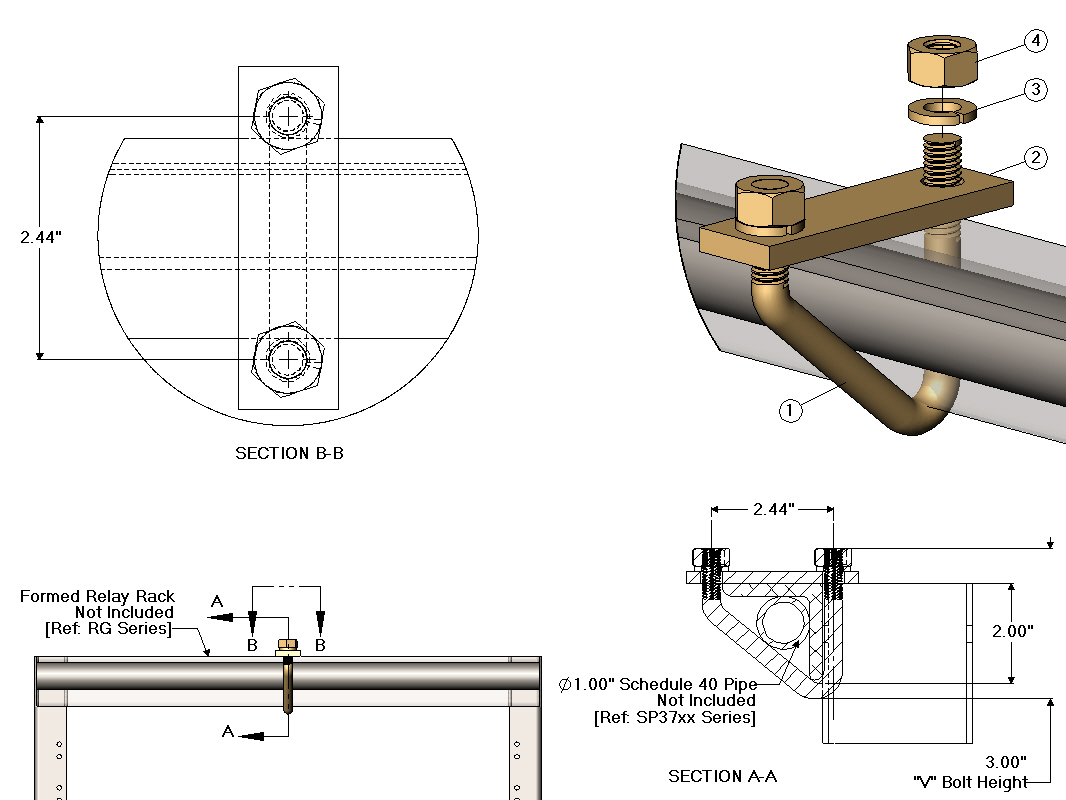

STA1201 - Formed Relay Rack to Aux. 1.00" Pipe [3.00" Bolt Height]
STA1201 - Formed Relay Rack to Aux. 1.00" Pipe [3.00" Bolt Height]
ItemCSF P/N#DescriptionQTY
1VB251"V" Bolt1
2THP282"V" Bolt Plate1
3LW1563/8"" Spring Lock Washer2
4HN1463/8-16 Hex Nut2

Notes

  •  All hardware zinc yellow.
  •  RG Series - Not Included
  •  Ref: RG Series
  •  1.00" Schedule 40 Pipe - Not Included
  •  Ref: SP37xx Series

Download Data Sheet
